Jwell Second-Hand HDPE 1200mm Pipe Production Machine

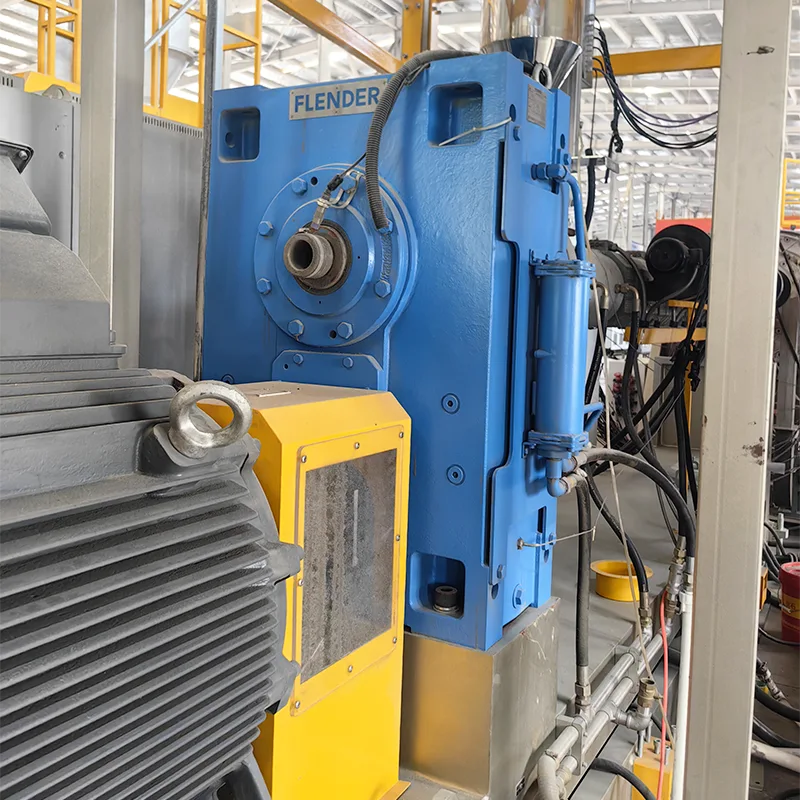

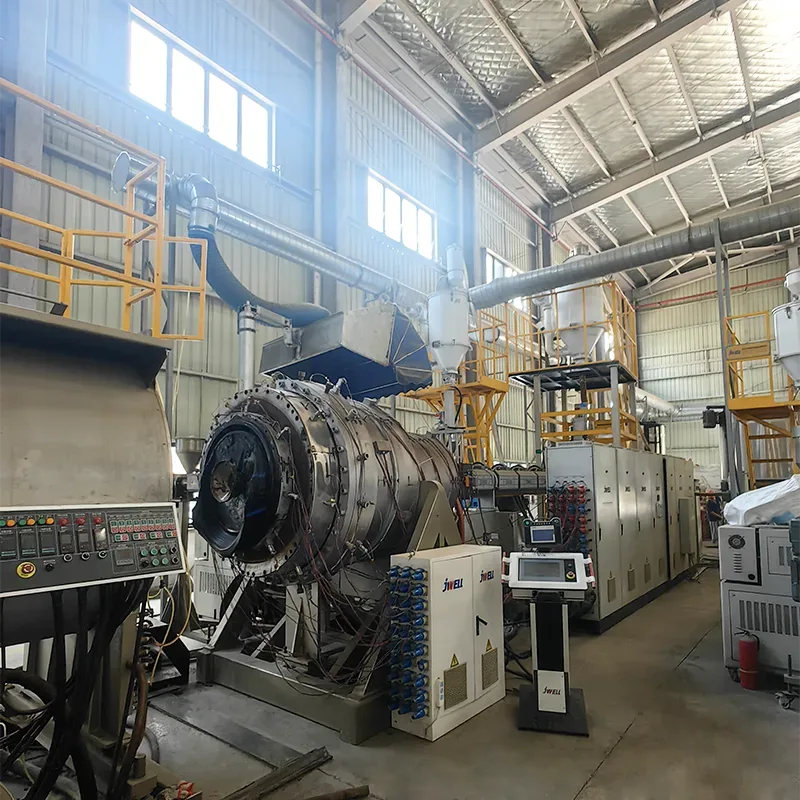

In recent years, China's manufacturing industry has emerged globally, and Shende Plastic Machinery is an outstanding representative among them. The company has profound technical accumulation and rich industry experience, focusing on the research and development and manufacturing of various plastic pipe production lines. Its products are exported to domestic and foreign markets, and have won widespread praise for reliable quality and excellent performance. This second-hand HDPE 1200mm pipe production machine has excellent performance. From the perspective of the extrusion host, the use of efficient and stable single screw extruders, such as the CE120-36 model, combined with the design technology of spiral feeding machine barrel and separated screw, can not only achieve high plasticization rate, but also ensure that the product has good melt uniformity, thereby ensuring stable and reliable pipe quality.

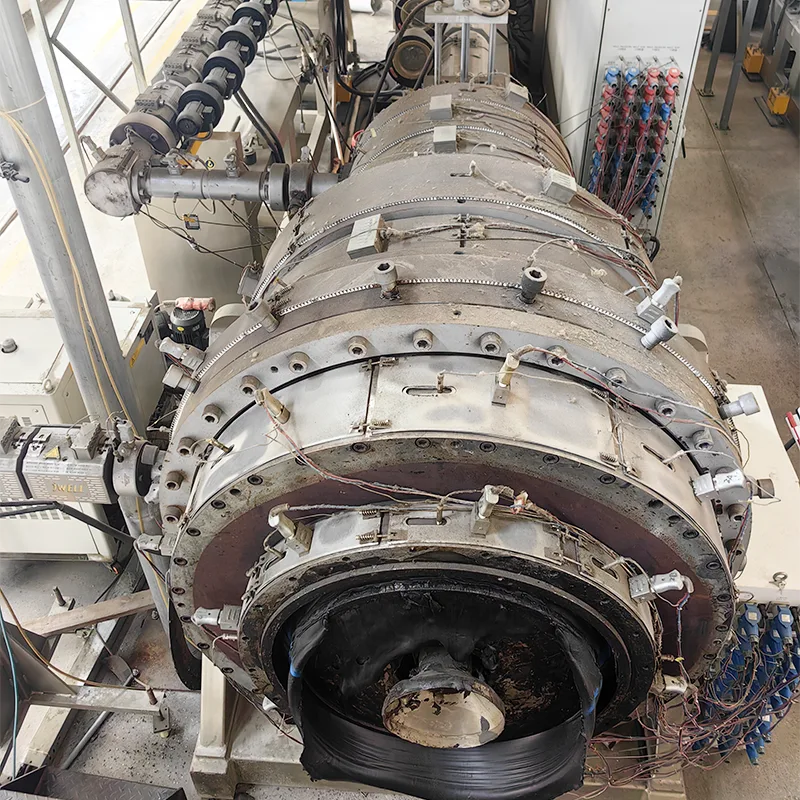

The extrusion mold adopts the M1200s model with double helix design, which has low die head pressure, uniform material distribution and good dispersion. At the same time, it is equipped with an IPC internal cooling system, which greatly reduces the cooling length by 30%. While suppressing melt sag, it achieves high efficiency and energy saving, reducing equipment procurement costs. The modular design also provides a wide range of optional components to meet different production needs.

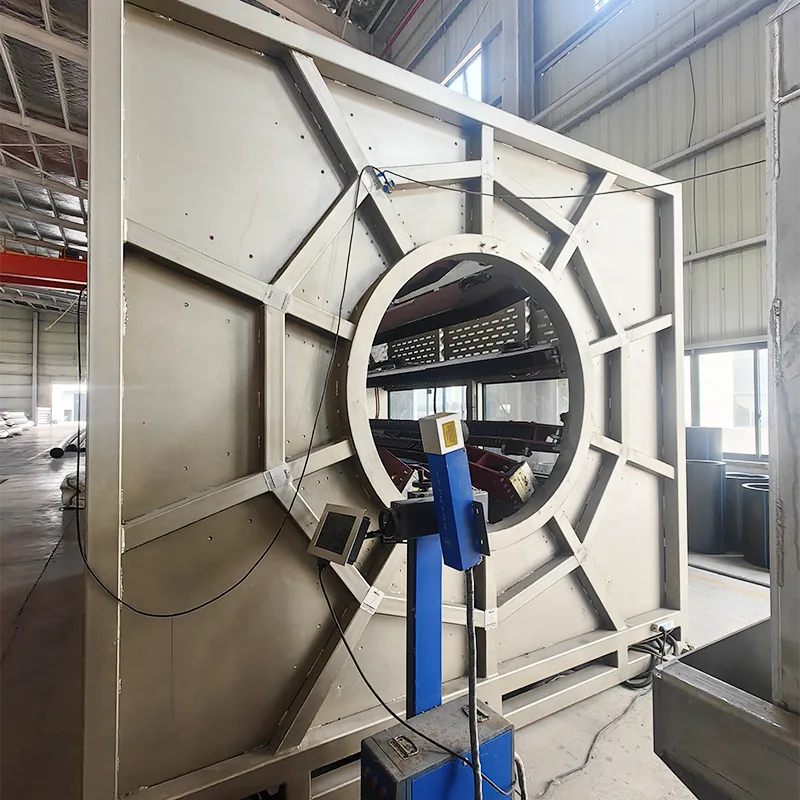

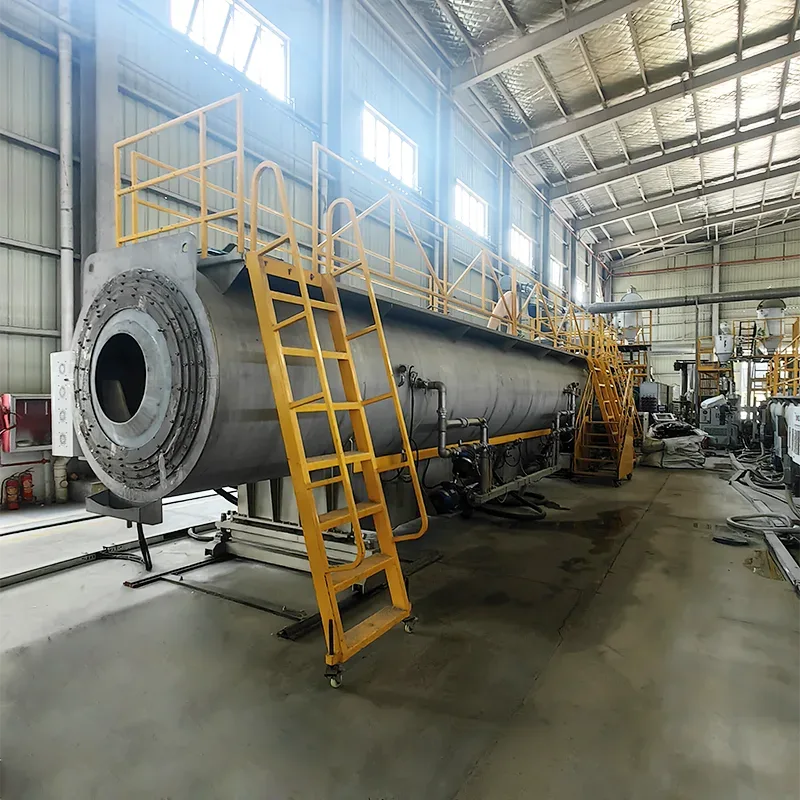

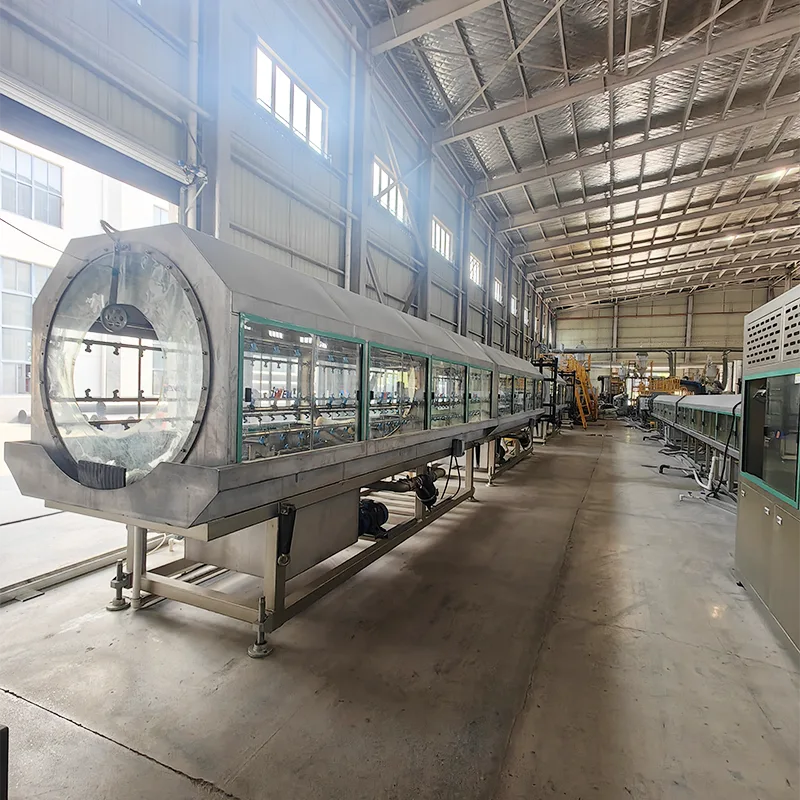

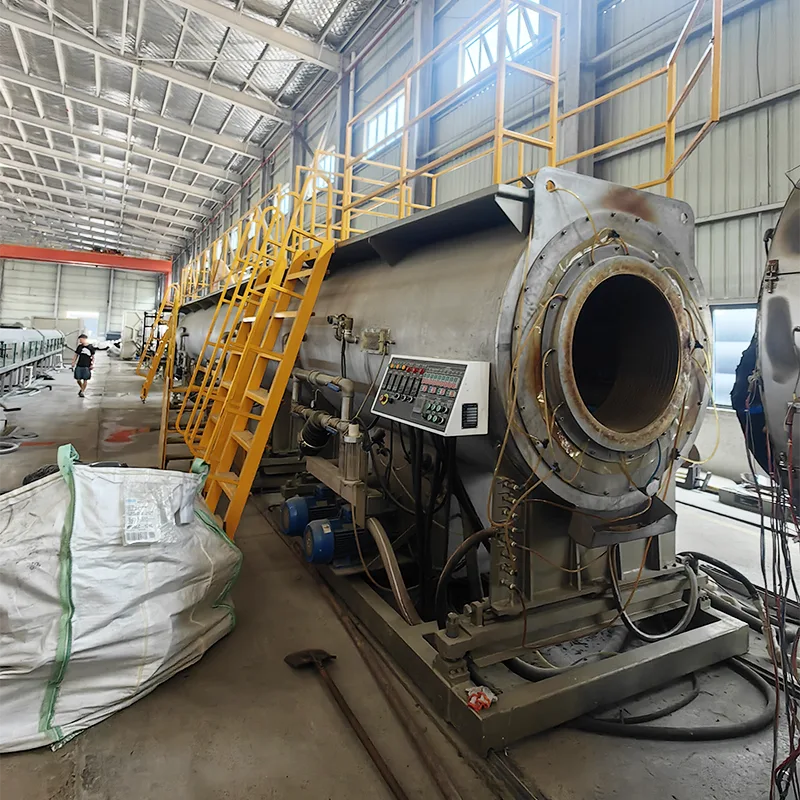

The vacuum sizing box and spray cooling water tank are equally excellent. The vacuum sizing box adopts a dual chamber structure design, equipped with a patented water level control device, and uses vacuum frequency conversion technology to effectively save energy consumption. The newly designed nozzle layout can ensure the ellipticity of pipes under high production capacity, and the pipe support can be adjusted to adapt to different pipe diameters. The box adopts 304 stainless steel natural color and tempered glass cover plate, which is convenient for observation and extends the service life. The tractor has an ultra long contact length, which can ensure strong traction even in situations where the friction coefficient between pipes and rubber blocks is very low. Each track is driven by a separate asynchronous motor, and the speed of each track is accurately synchronized through a digital controller. An imported encoder is used to form a closed-loop control, ensuring stable and reliable speed. The shaftless planetary cutting machine operates stably, with no chips or noise during cutting. Equipped with an imported hydraulic unit, it is easy to operate, structurally sound, and has adequate safety protection. In terms of price, second-hand equipment has significant advantages compared to brand new equipment.

Choosing this second-hand HDPE 1200mm pipe production machine from Shende Plastic Machinery allows enterprises to obtain high-performance production equipment at a lower cost, greatly reducing initial investment costs and improving capital utilization efficiency. At the same time, Shende Plastic Machinery's comprehensive after-sales service system also provides strong guarantees for the subsequent use of second-hand equipment, allowing enterprises to have no worries. For pipe production enterprises, the second-hand HDPE 1200mm pipe production machine produced by Shende Plastic Machinery integrates the exquisite craftsmanship of Chinese manufacturers, excellent equipment performance, and highly attractive price advantages, making it an ideal choice to improve production efficiency and reduce costs.
